Kanban 1900x1230 mm tilted

KLT - MOBILE - Pick end TILTED

Kanban 1900x1230 mm tilted
Kanban 1900x1230 mm tilted
Ask for a quick quote *Prices are exclusive of VAT
Article code915154421


Original Flowrack type PRO+
- Kanban flow rack
- For KLT-VDA bins up to 30 kg
- Heavy-Duty roller tracks
- 4, 5 or 6 levels in height
- Mobile (castors)
- Tilted pick side with end stop
Free
- Preassembled delivery
Long warranty period
- 5 years on the roller tracks
- 2 years on all other parts
Colour scheme choices
- Yellow (short delivery time)
- Black
Detailed info rack layout:

Detailed info lane distribution:

This article is available in various models

Kanban 1900x1230 mm tilted - KLT-VDA W=200mm

915152421
Ask for a quick quote

Kanban 1900x1230 mm tilted - KLT-VDA W=300mm

915153421
Ask for a quick quote

Kanban 1900x1230 mm tilted - KLT-VDA W=400mm

915154421
Ask for a quick quote


This product can be ordered for the following KLT-VDA bin widths:




7 lanes
per level
5 lanes
per level
4 lanes
per level




Description

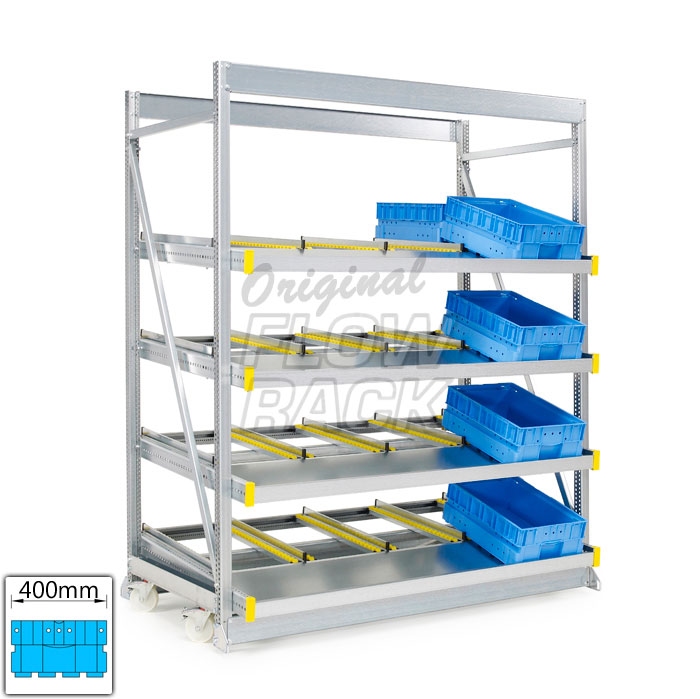

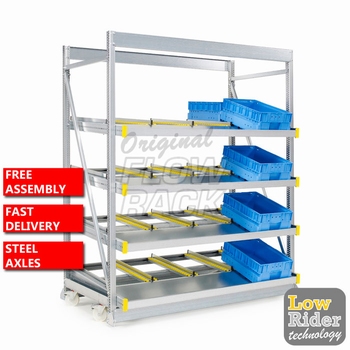

Durable mobile Flowrack kanban flow rack with tilted pick side.
Specially for KLT-VDA bins (up to 30 kg, heavy-duty roller tracks are included).

Heavy and stable profiles for decades of efficient order picking.
Durable heavy-duty roller tracks with solid steel axles.

Mobile kanban flow rack

Extremely stable mobile version with 4 heavy castors including locking brake.
Extra low construction height due to “Low Rider Technology”.
Unique anti-tilt aid.

Dimensions and load capacity kanban flow rack

W= 1900 mm (width between posts 1790 mm).
D= 1230 mm (net storage depth 1200 mm).
H= 2340 mm (including wheels).

Maximum 70 kg per lane, 300 kg per level, 1000 kg per rack (evenly divided).
KLT-VDA bin weight up to 30 kg (heavy-duty roller tracks are included).

For KLT-VDA bins

The width of your KLT-VDA bins determine the number of lanes next to each other.
The lanes each have 2 roller tracks and are separated by guide strips (whole depth).

Complete and ready-to-use due to free preassembly

1. Including upright frames with mobile base.
2. Including 4 flow shelves, heights are evenly divided.
3. Including all roller tracks and guide strips for the chosen KLT-VDA bin width.
4. Including all lanes: Already set to the chosen KLT-VDA bin width.

Available kanban flow rack versions

Choose and order your kanban flow rack based on your KLT-VDA bin width.
Choose your colour scheme (yellow or black).
You would like a different setup? Let us know and we will make a quotation for you.
